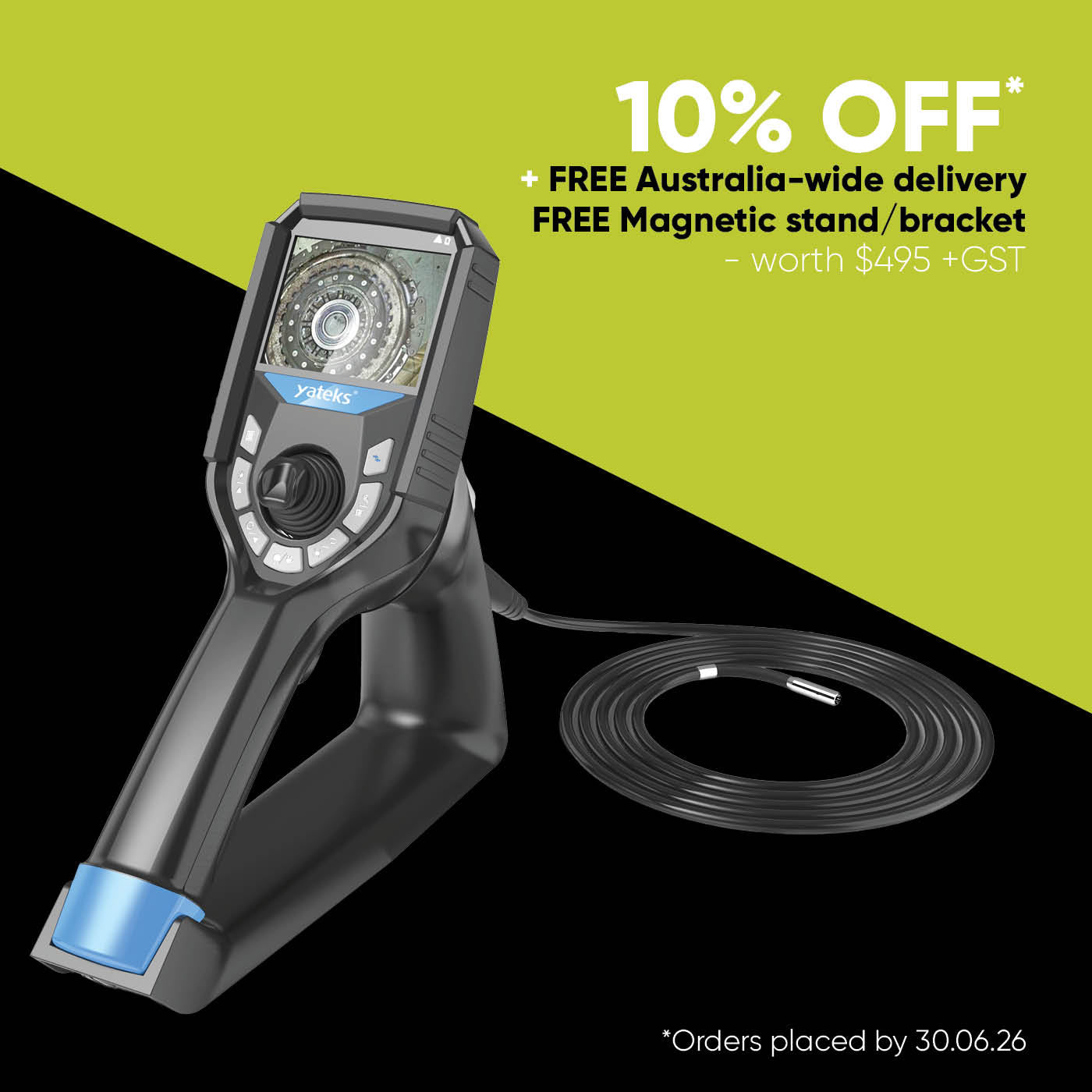

Yateks M Series Borescope

Yateks M Series is a portable mechanical 360-degree industrial borescope with interchangeable tubes and weighs only 0.6kgs.

The mechanical joystick control, interchangeable tubes of different diameters and lengths and a variety of camera modes make this inspection camera a popular choice to visually investigate a range of spaces. The M Series borescope inspection camera is widely used in aviation, automobile, marine, electric and chemical industries.

Features

• 3.9mm
• Up to ~170° camera tip return on itself
• 4-way camera tip control via mechanical joystick
• Insertion probe is comprised of wear-resistant tungsten wire
• Effective pixels: 450,000
• 9cm screen on handset
• Super-bright LED lighting (6 settings)
• Image zoom function
• Forward-facing camera with 100° field of view
• Side-facing camera with up to 90° field of view
• Depth of field/focus – 7mm to 80mm or 3mm to 30mm
• Still and video image recording to system SD card (SD Card reader supplied)
• Rechargeable Lithium-Ion batteries (x2 supplied…1 battery required for system use)

*All prices exclude GST

 Download the Yateks M Series Borescope Product Flyer
