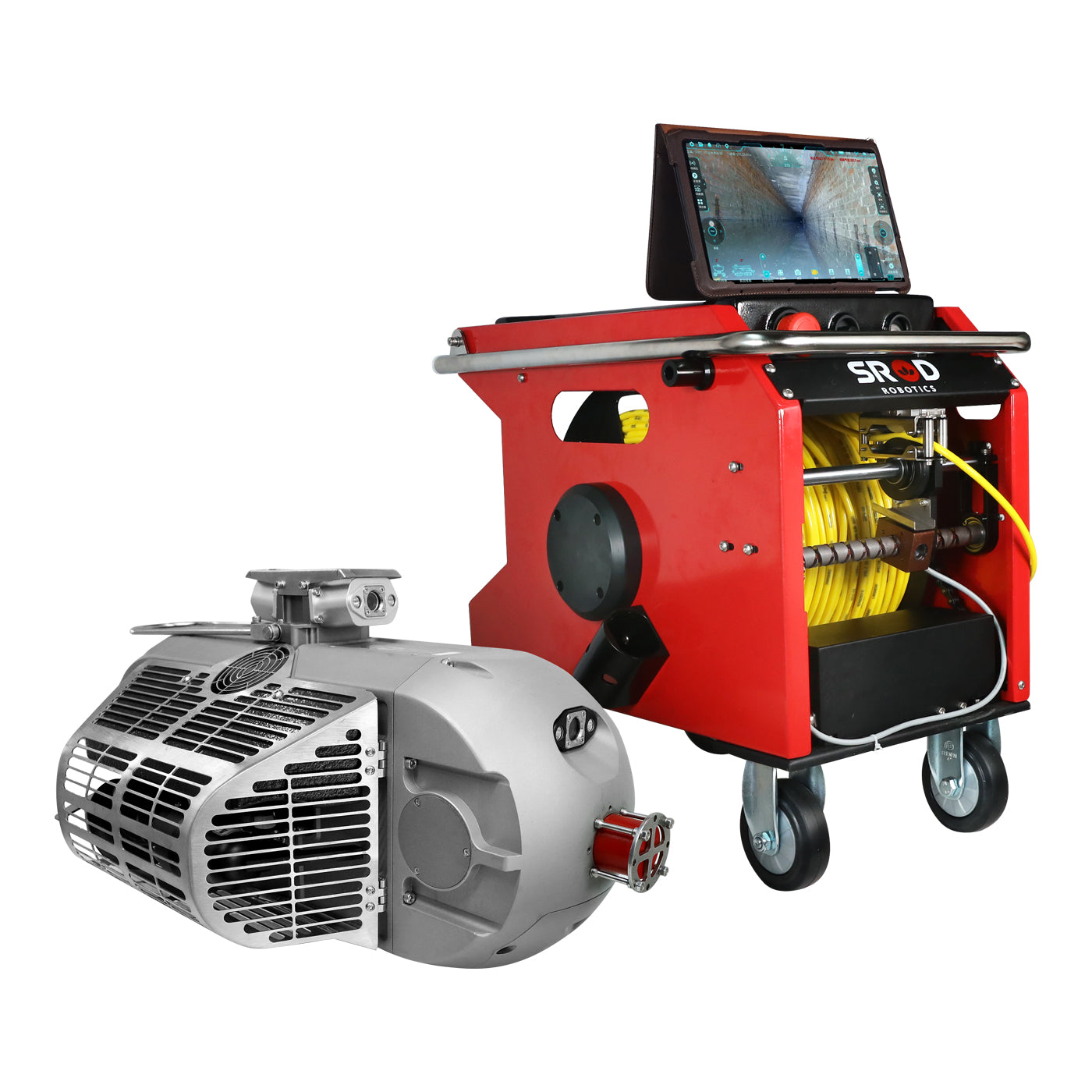

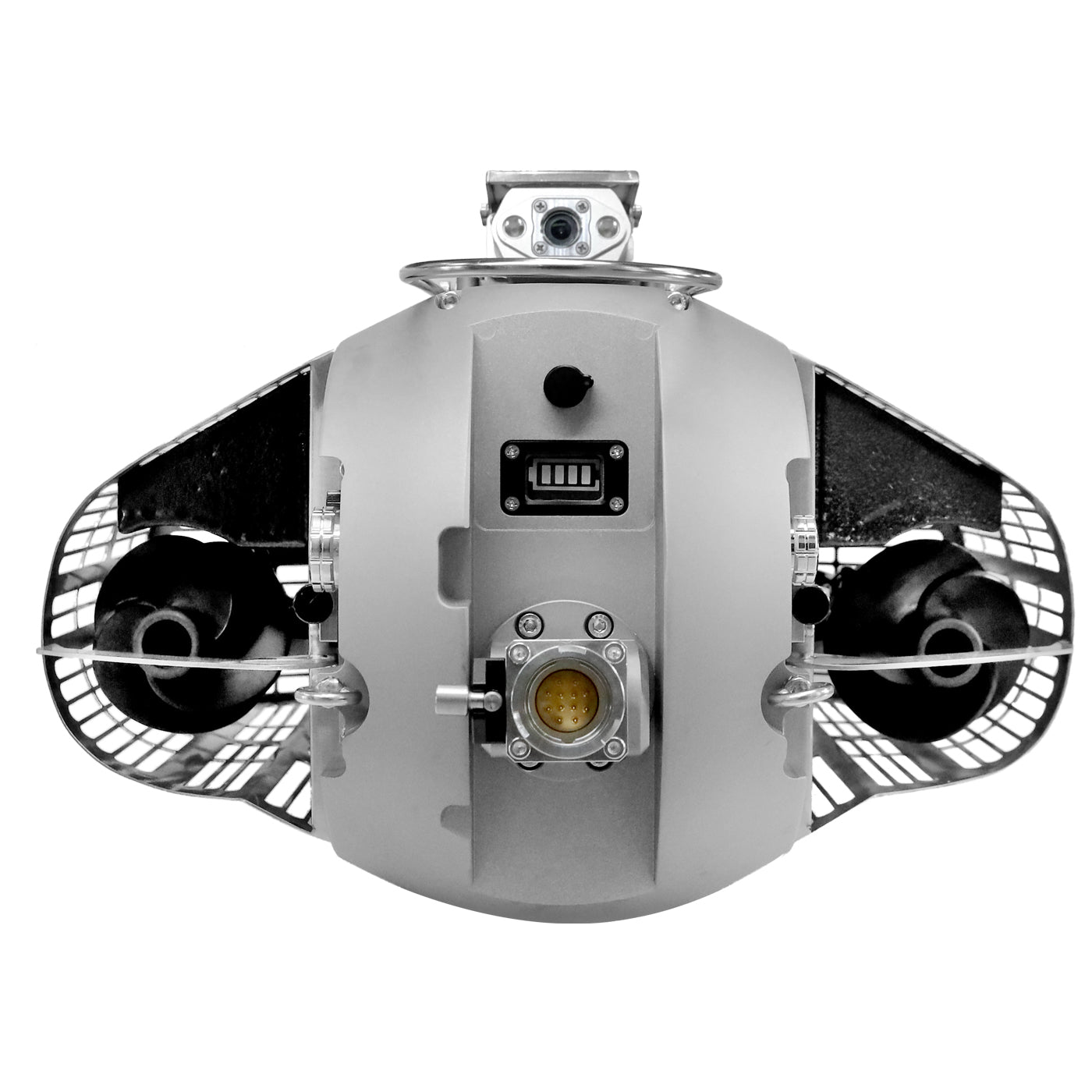

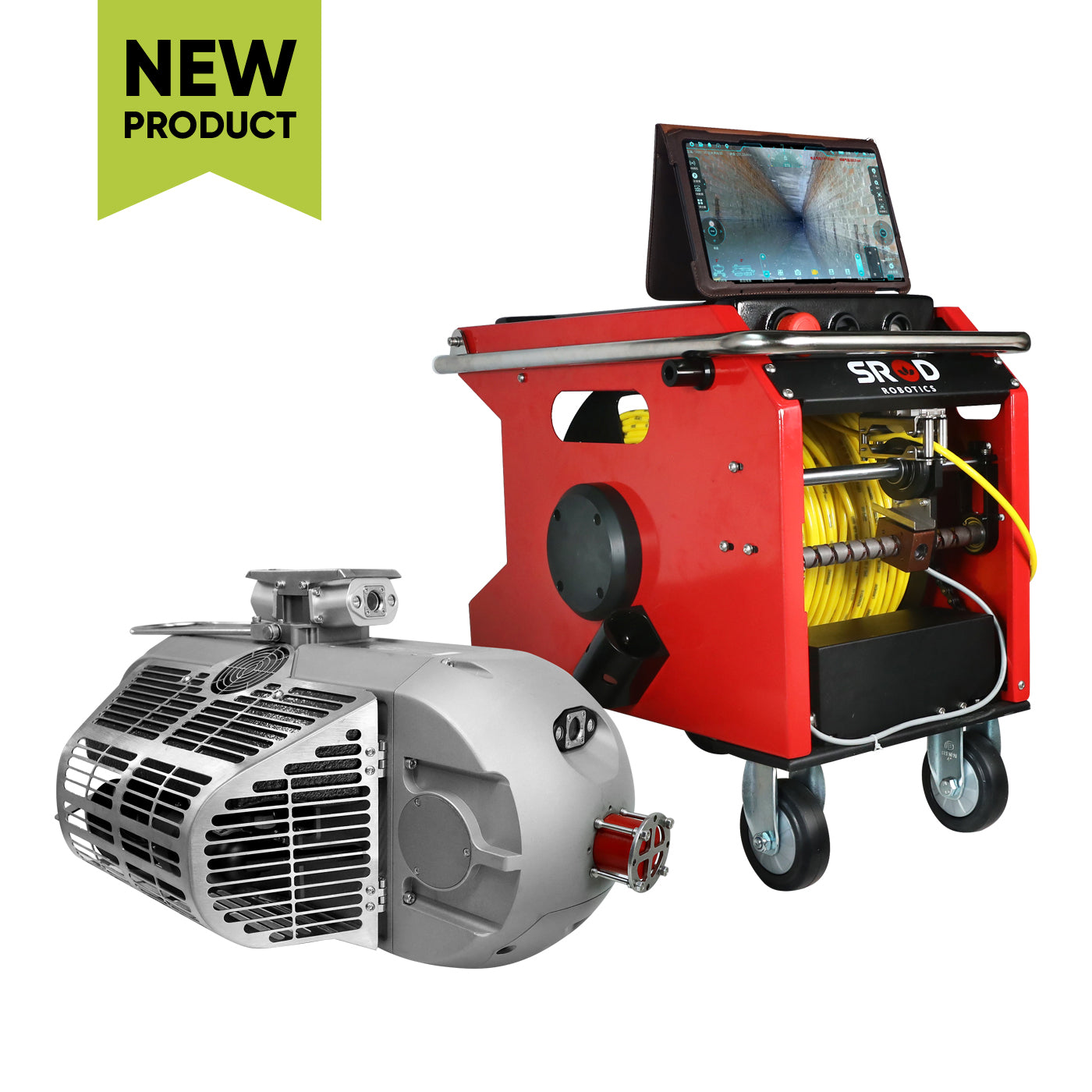

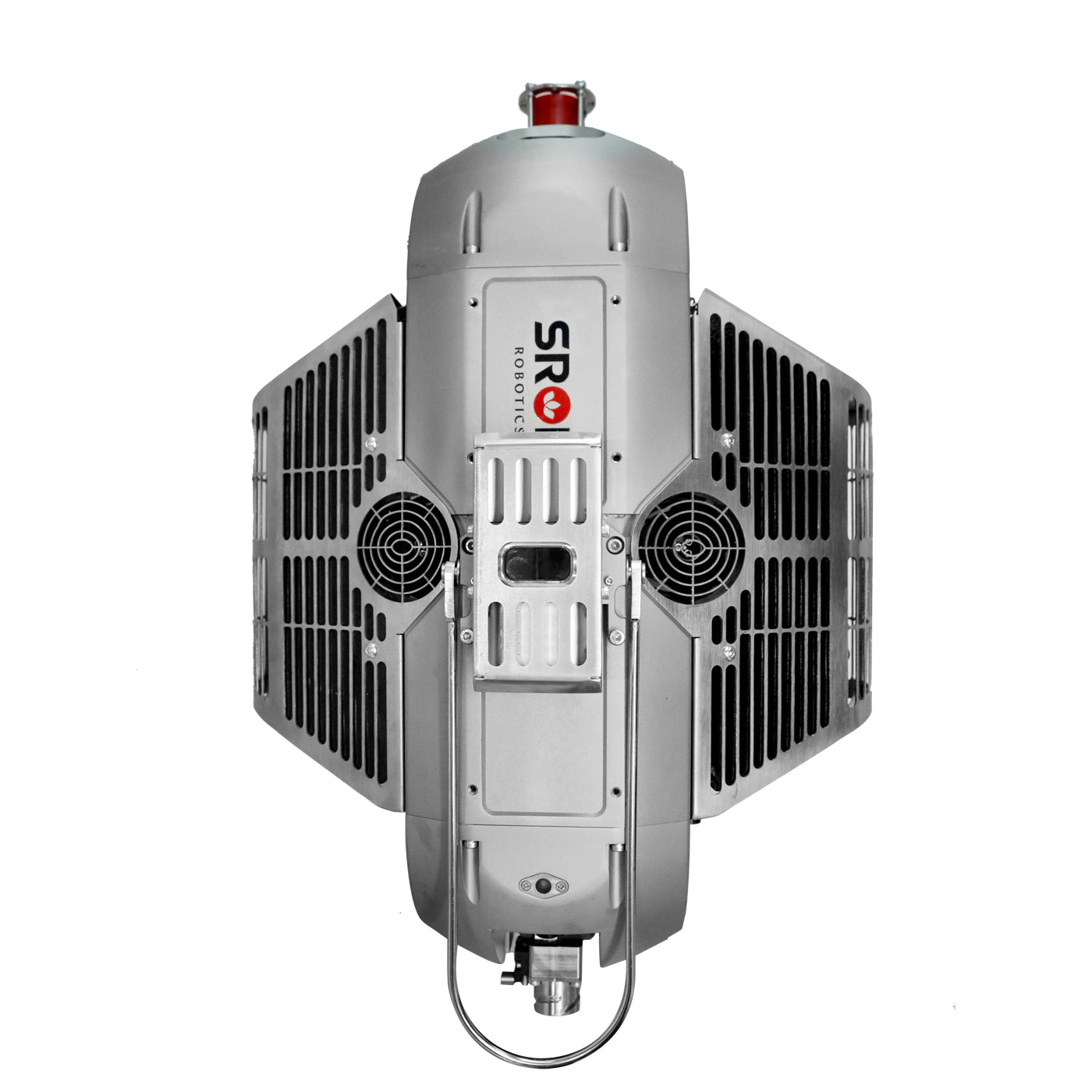

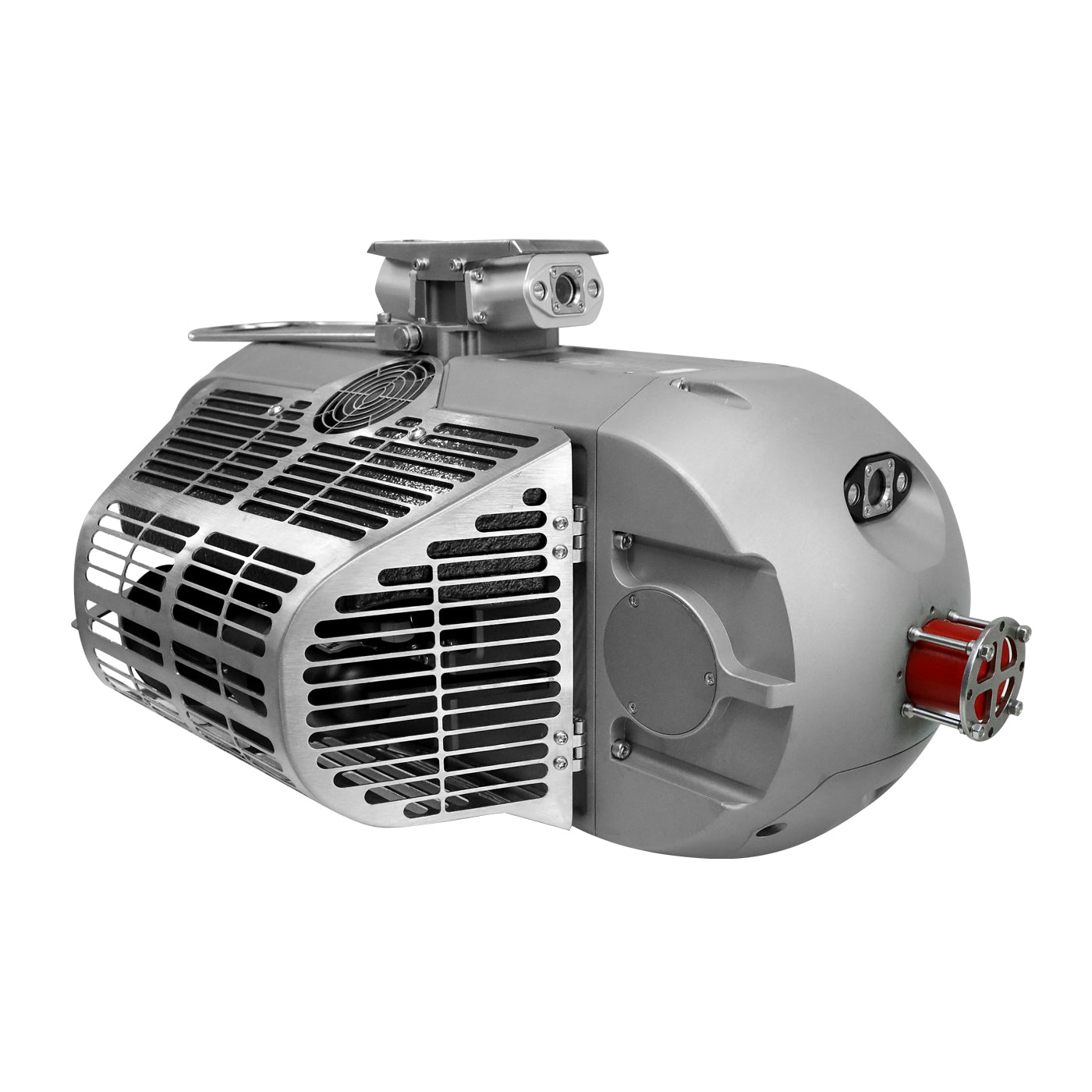

SROD S3831E Sonar Inspection Robot

The SROD S3831E is an advanced, sonar inspection robot designed for pipelines and infrastructure from 500mm to 6000mm in diameter where high-water-level conditions make traditional inspection methods difficult. With its amphibious design and self-propelled thrusters, the robot glides effortlessly through pipes, culverts, reservoirs, and sewer mains—floating, diving, and manoeuvering without a traction cable.

Equipped with forward and rear-facing HD cameras, ultra-bright LED illumination, and a high-frequency 2.25MHz sonar system, the robot crawler can automatically calculate sediment volumes, identify cracks, deformations, deposits, and intrusions, in low light and murky conditions - without the need for dewatering or diversion with a waterproof rating up to 20m.

The 200m zero-buoyancy cable (extendable to 1000 meters) ensures the camera can perform long-distance inspections without the cable interferring, while advanced depth and cruise control sensors ensure stable, automated navigation.

Easy to set up, simple to operate via a handheld tablet, the S3831E offers the ultimate solution for inspections in high-water-level conditions.

Features

• Suitable for easy & safe inspections where high-water-levels are present - pipes/drains/culverts/dams/reservoirs/lakes
• Quick & simple to set-up and use
• Amphibious, self-powered robot (can move forward, backward, turn, ascend & descend without a traction cable)
• Power thrusters - 2x vertical and 2x horizontal
• Forward- and rear-facing 210W Starlight HD camera heads
• High precision sonar providing super-accurate scanning
• Sonar head - Frequency: 2.25MHz, Range: 250mm to 6000mm, Scanning: 1 scan circle per second
• Advanced sensors providing preset depth & cruise control
• Ultra-high LED illumination
• 200m zero buoyancy cable (can be extended to 1000m)
• Battery life (High gear: 2 hours, Low gear: 4 hours)
• Can be used in pipes with diameters from 500mm to 6000mm
• Handheld tablet control terminal, with intuitive report generation
• IP68-rated protection - 20m waterproof depth
• 12-month warranty (plus free lifetime online support)

Download the S3831E Sonar Inspection Robot Product Flyer
