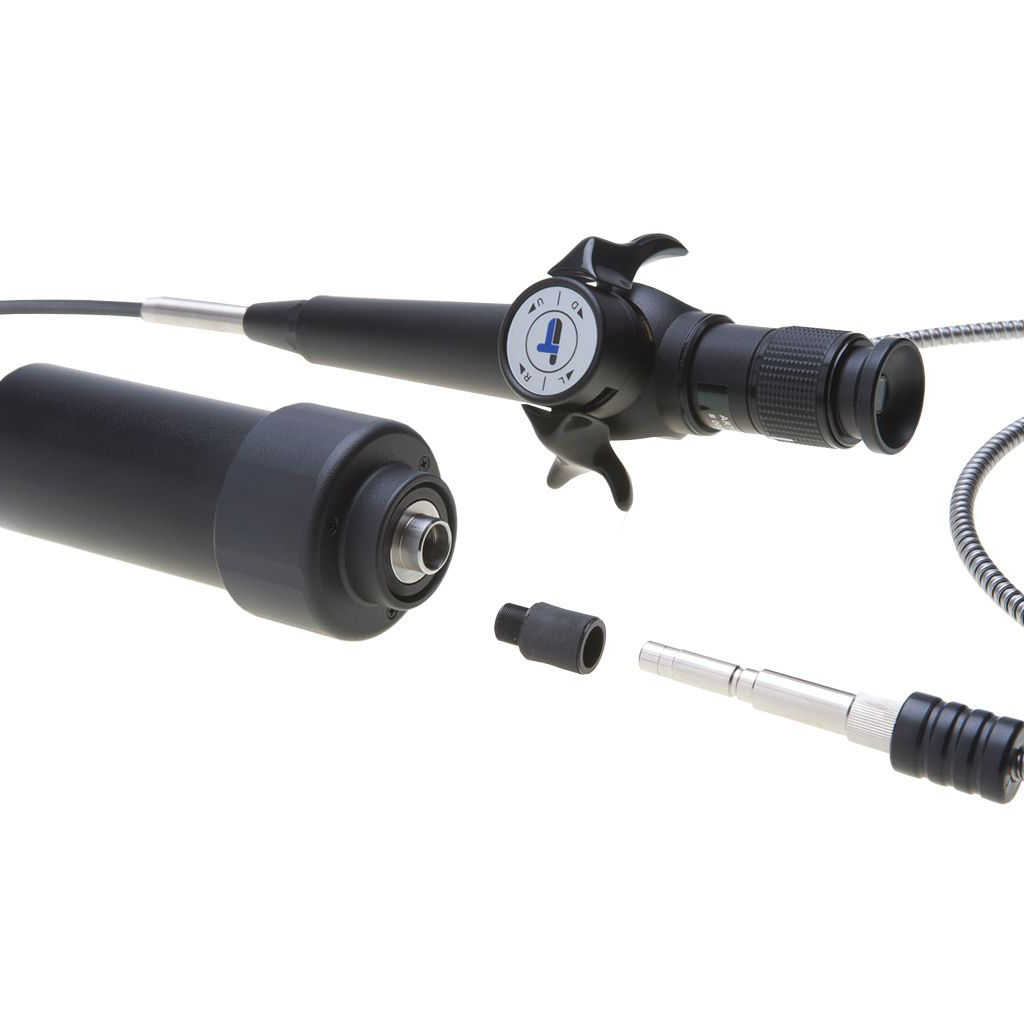

IT Concepts iFlex Fiberscope
Camera Probe Diameter:3.9mm
Insertion Probe Length:1m
Available as a 2-way or 4-way articulating industrial endoscope. The iFLex fiberscopes is a small diameter inspection camera used for the remote visual inspection of the smallest and most complex passages and internal cavities which cannot be viewed from the outside or with direct line of sight. An articulating fiberscope camera is perfect for inspecting tubing, castings, medical equipment and precision manufactured parts.
Features:
- Ultraviolet light detection - for UV fluorescent reactant use, hazardous article searches, urban-response use etc
- Advanced image processing technology
- Advanced illumination technology

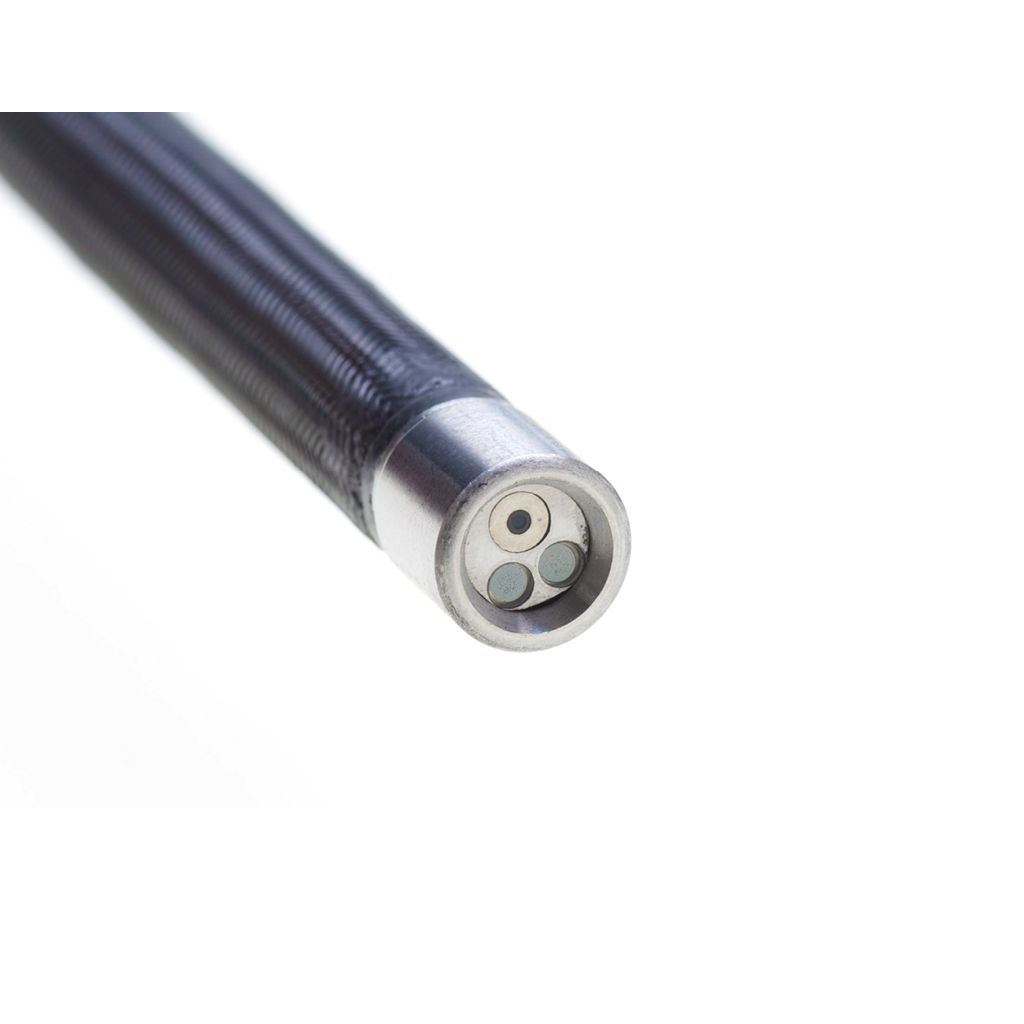

- Short camera metal tip length (only 4mm)

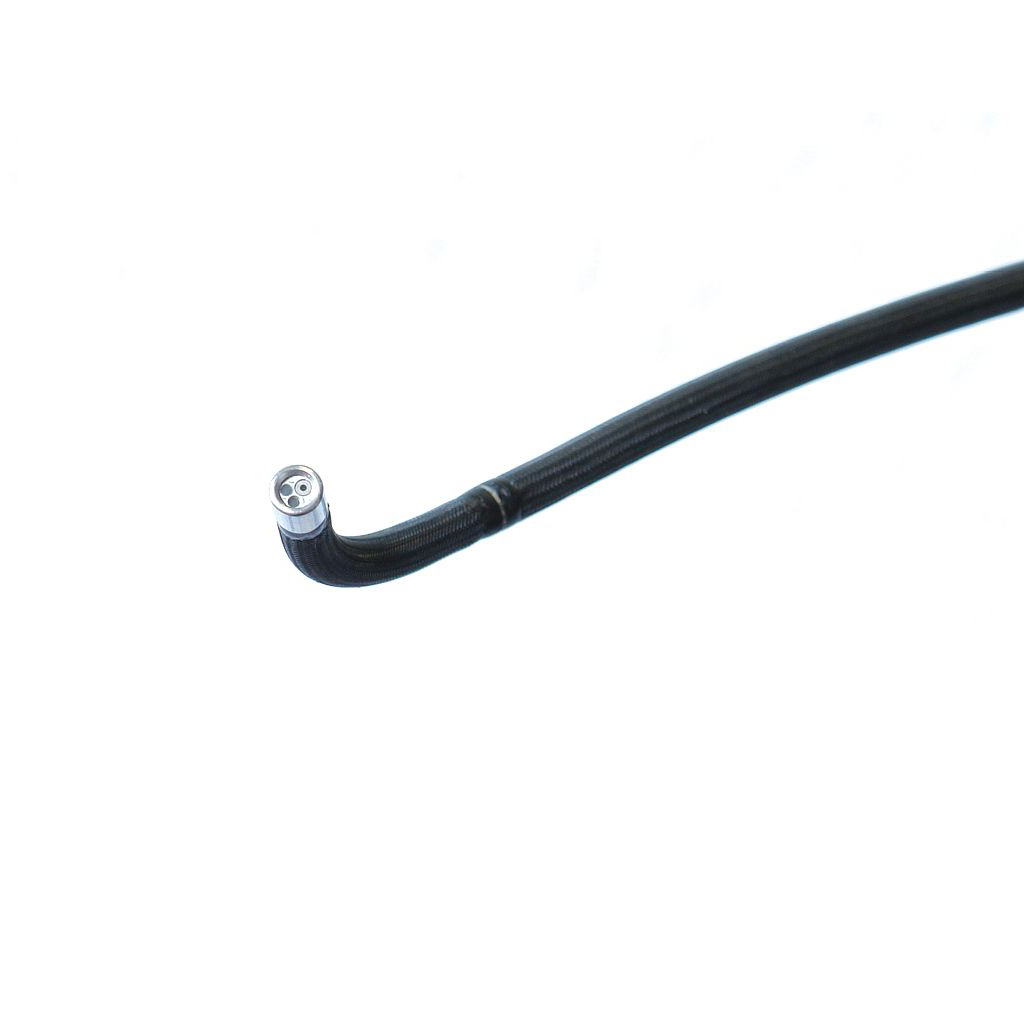

- 360° camera head articulation
- Up to ~170° camera tip return on itself
- 4-way camera tip control via mechanical joystick
- Insertion probe is comprised of wear-resistant tungsten wire
- Effective pixels: 450,000
- 9cm screen on handset

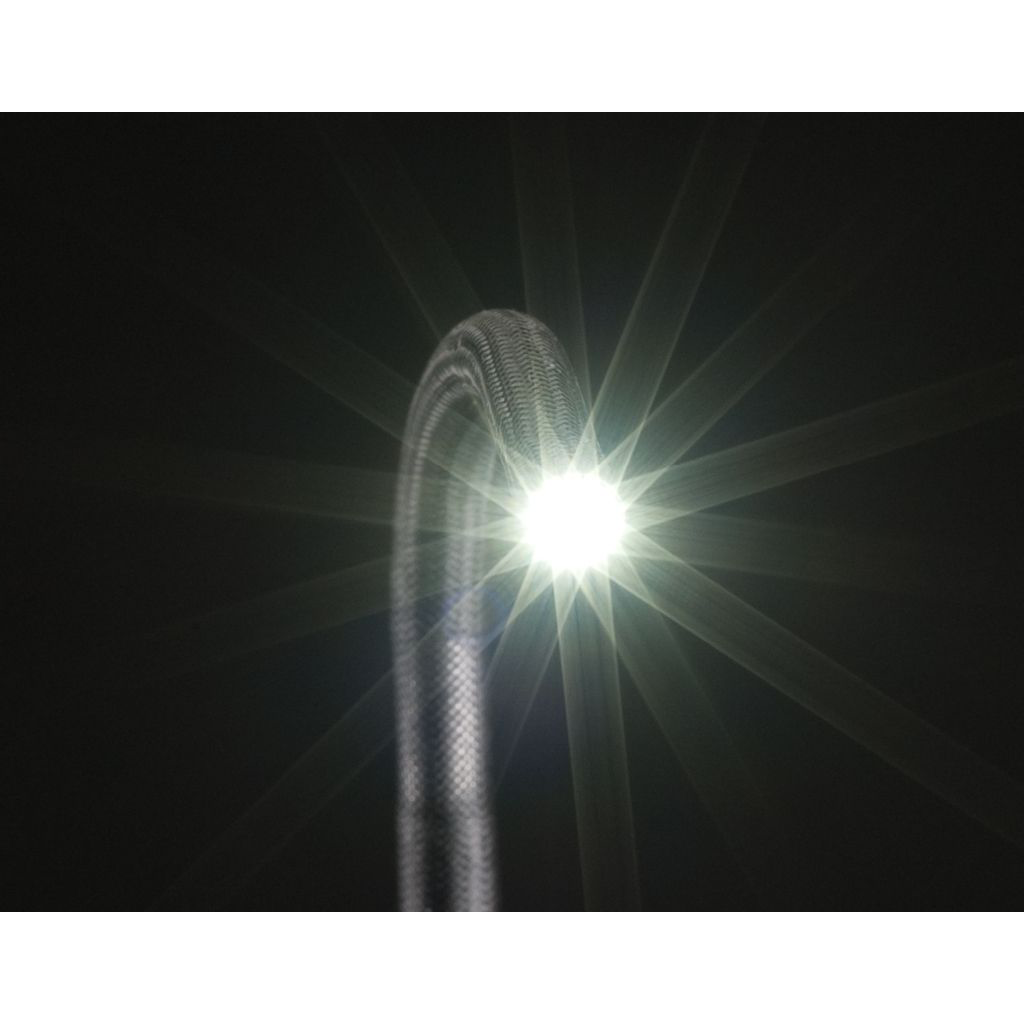

- Super-bright LED lighting (6 settings)
- Image zoom function
- Forward-facing camera with 120° field of view
- Side-facing camera with up to 90° field of view
- Depth of field/focus – 7mm to 80mm or 3mm to 30mm
- Still and video image recording to system SD card (SD Card reader supplied)
- Rechargeable lithium-ion batteries (2 supplied. 1 battery required for system use)
